Electrification Kit – eKit48

POA

Get to know the eKit48

Safe in handling, due to extra low safety voltage technology (SELV).

Flexible, with up to four battery systems with integrated BMS (Invenox LIOS 48V), one or two electric drives and with up to two AC on board chargers and DC fast charging interface.

Modular function package for easy parametrisation vs. programming.

One stop shop package, including Software with standardised customer interface, configurable Power Distribution Unit and integrated thermal management.

Validated cable harness with two canbus channels.

Ready for prototypes, with preevaluated modules and standardised pre-configured systems for individual setups.

Plug and work system, scalable for various applications.

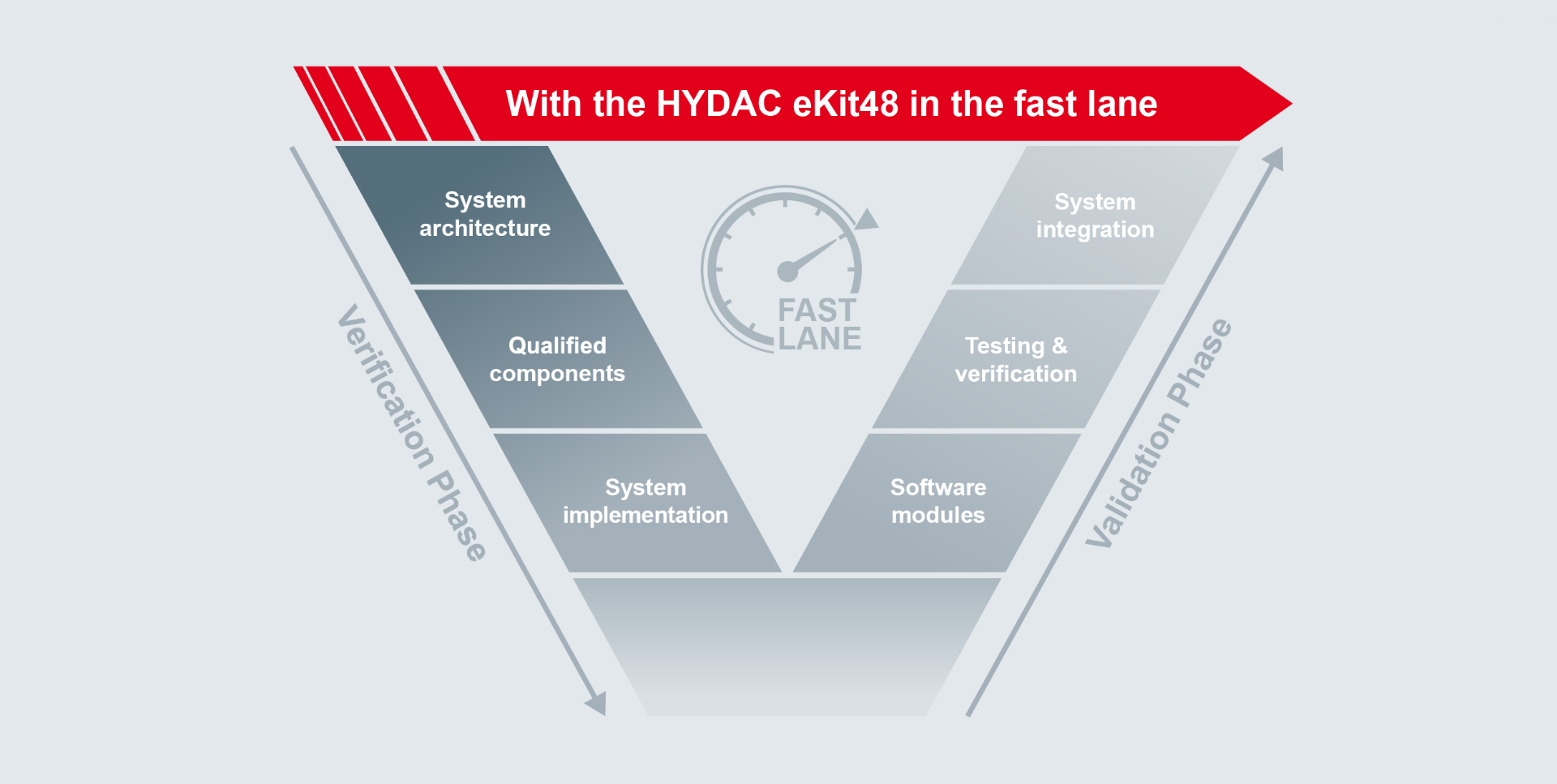

HYDAC has found a solution that covers the entire V-model

Be faster on the market compared to the conventional R&D approach:

  • Up to 53 %* less emission
  • Up to 7.5 * tons less CO2 / machine
  • Up to 561.8 * tons less CO2 / fleet

Main technical characteristics

  • Up to 15 kW cont. power up to 35 kW peak power
  • Up to 7,500 rpm, up to 65 Nm
  • Li-Ion battery modules, up to 6.1 kWh each, 24.4 kWh total
  • On board charger with up to 6.6 kW charging power and EVSE interface
  • Up to three connections for electrical auxiliary equipment
  • DC/DC converter from 48 V to 12 V or 24 V with 500 W, 250 W or 850 W
  • Water-cooled system possible

Contact us today for more details.
