The area of “infrastructure" covers both the charging infrastructure (high power charging) for battery-powered vehicles and hydrogen filling stations for fuel cell vehicles.

Our products are already in use in many of these applications. This includes cooling solutions for charging cables and power electronics, hydrogen pressure sensors, hydrogen filtration, technical cleanliness and hydraulic drive units for high-pressure compressors.



Components and systems for quick charging stations

To shorten the charging times of electric vehicles, many vehicle manufacturers use high power charging (HPC), which makes it possible for batteries to be charged in a matter of minutes with charging rates of 350 kW and more.

Because of the high charging currents, the cable resistance in the charging cable and the charging connector cause a large amount of heat to be generated. To keep temperatures within the permitted range during charging, the charging cable and connector are cooled with a fluid. As the cooling systems needed for this are often integrated directly into the charging station, they need to be especially powerful and compact.

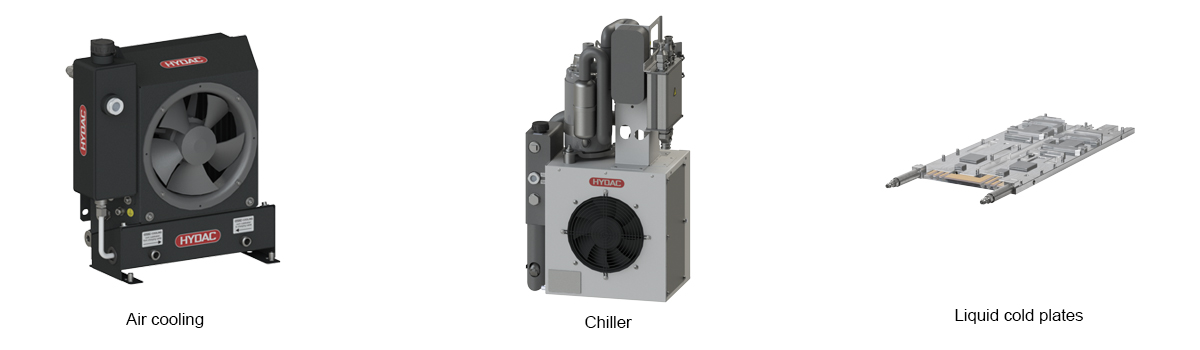

Cooling systems for cooling charging cables in quick charging stations (HPC)

The fluid can be cooled either with ambient air or alternatively with a cooling compressor, depending on the environmental and operating conditions.

HYDAC is one of the leading suppliers of cooling system solutions for charging infrastructure and can provide the perfect solution for your application.

Cooling systems for cooling charging cables

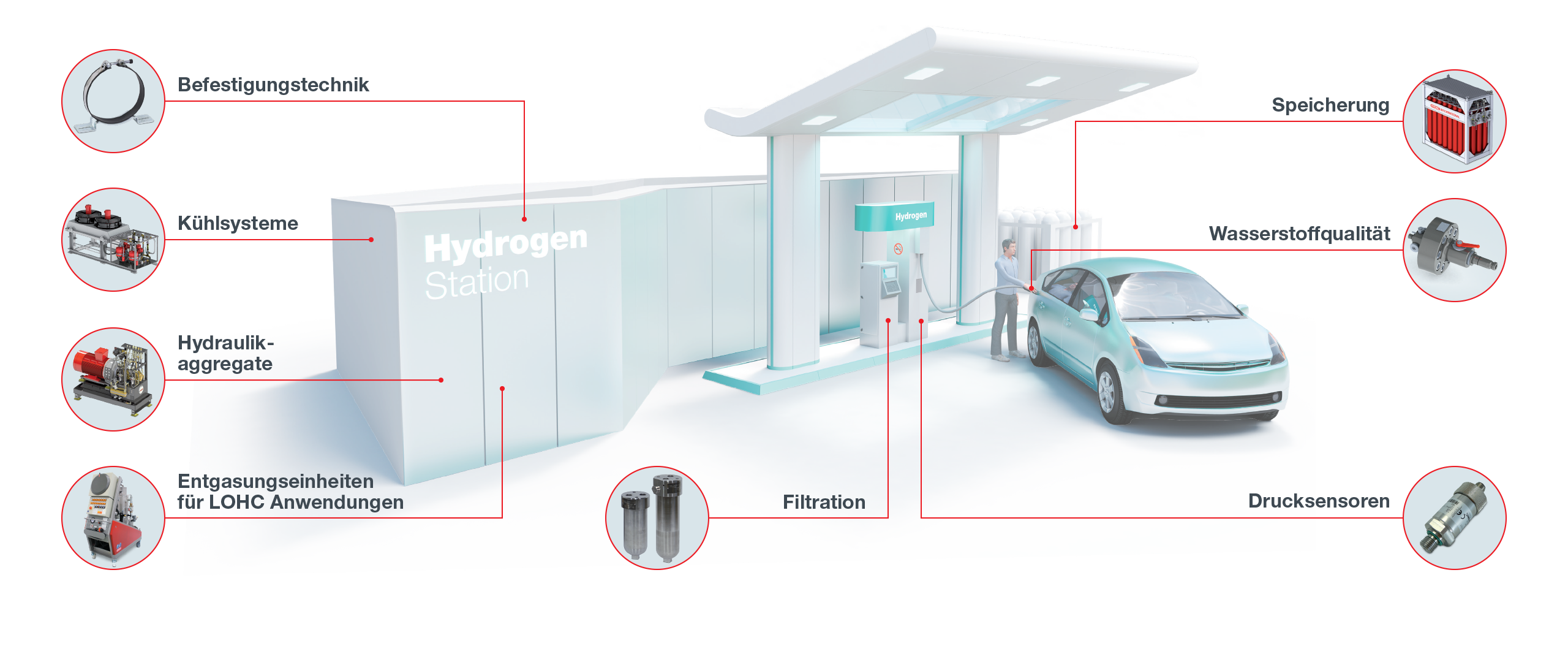

Components and systems for hydrogen filling stations

Hydrogen will play a major role in future in an energy system that is increasingly reliant on renewable energy.

HYDAC equipped the first hydrogen filling station with hydraulic components back in 2006. We have since become a leading manufacturer of hydraulic drive units for a wide range of compressors that are responsible for providing the required system pressure to hydrogen filling stations.

In hydrogen-powered vehicles, the cleanliness and quality of the hydrogen is of great importance. When the vehicles are filled, the hydrogen supplied by the filling stations must be as clean as possible, with no contamination. As an expert in technical cleanliness, we have developed the world’s first analysis equipment that can be used to verify and analyse the particulate impurities under standard SAE conditions – the HYDAC PSA H70.

Experience with the PSA H70 has shown that effective and robust gas filtration that is able to handle the strict requirements of hydrogen filling is essential. With their combination of optimum housing design and innovative filter element technology, the HYDAC filter and separator solutions meet the strictest standards for all fields of application up to 1,000 bar and thus significantly contribute to the technical cleanliness of hydrogen filling stations.

HYDAC now supplies a wide range of components for the hydrogen filling station industry. This includes specially developed pressure sensors with ATEX and IECEX certification as a single or redundant version (SIL2-compliant) up to 1,050 bar. Furthermore, we supply cooling systems for recooling the heat generated by the compression of the hydrogen and compressor cooling units for setting the gas precooling temperature.

Components and systems for hydrogen filling stations


Particle filters and fluid separators for hydrogen

HYDAC is offering the leading technology for filtering gases in hydrogen applications up to 1,050 bar. The design of the filters provides maximum filter area in the most compact dimensions and is noted for excellent process stability, top quality permeate and minimal pressure loss.



Pressure sensors for hydrogen

With over 30 years of experience in developing and producing pressure sensors, HYDAC Electronic has established a new series of hydrogen pressure sensors on the market. The pressure sensors are now used worldwide in fuel cell vehicles (with EC79/2009 certification) and stationary applications (ATEX, IECEX, CSAUS).

Pressure sensors for hydrogen
