Mounting Clamps

Mounting Clamps to DIN 3015 are a sophisticated modular system for fixing pipes with static and dynamic loads.

Se below a model code to assist your ordering process.

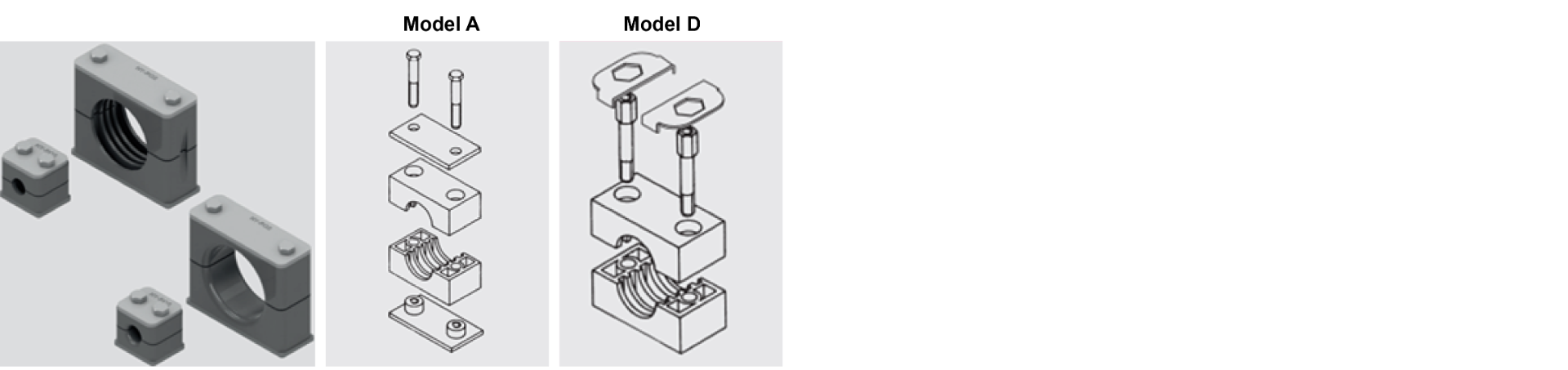

Light Range Clamps - HRL

Find below the part numbers for our HRL - light range clamps. Log in to your My HYDAC portal to order.

* Please order two packs (total 100 pieces) in order to have a complete assembly.

Size	Bore Size	Part Number	Part Description	Superseded Description	Superseded P/N	Components	Material	Quantity
0	6.4	261413	HRL 0 KP 6.4 PP JAWS (Bag of 50 pairs)	HRL 0 A 6,4 PP ST M BL	423121	Jaws (pair)	Polypropylene	50
0	6.4	3984076	HRL 0 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
0	6.4	267949	HRL 0 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
0	6.4	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
0	8	261414	HRL 0 KP 8 PP JAWS (Bag of 50 pairs)	HRL 0 A 8 PP ST M BL	423122	Jaws (pair)	Polypropylene	50
0	8	3984076	HRL 0 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
0	8	267949	HRL 0 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
0	8	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
0	9.5	261415	HRL 0 KP 9.5 PP JAWS (Bag of 50 pairs)	HRL 0 A 9,5 PP ST M BL	423123	Jaws (pair)	Polypropylene	50
0	9.5	3984076	HRL 0 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
0	9.5	267949	HRL 0 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
0	9.5	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
0	10	261416	HRL 0 KP 10 PP JAWS (Bag of 50 pairs)	HRL 0 A 10 PP ST M BL	423124	Jaws (pair)	Polypropylene	50
0	10	3984076	HRL 0 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
0	10	267949	HRL 0 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
0	10	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
0	12	261417	HRL 0 KP 12 PP JAWS (Bag of 50 pairs)	HRL 0 A 12 PP ST M BL	423125	Jaws (pair)	Polypropylene	50
0	12	3984076	HRL 0 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
0	12	267949	HRL 0 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
0	12	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
1	6	261427	HRL 1 KP 6 PP JAWS (Bag of 50 pairs)	HRL 1 A 6 PP ST M BL	423127	Jaws (pair)	Polypropylene	50
1	6	3984288	HRL 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	6	262753	HRL 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	6	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
1	6.4	261428	HRL 1 KP 6.4 PP JAWS (Bag of 50 pairs)	HRL 1 A 6,4 PP ST M BL	423128	Jaws (pair)	Polypropylene	50
1	6.4	3984288	HRL 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	6.4	262753	HRL 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	6.4	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
1	8	261429	HRL 1 KP 8 PP JAWS (Bag of 50 pairs)	HRL 1 A 8 PP ST M BL	423129	Jaws (pair)	Polypropylene	50
1	8	3984288	HRL 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	8	262753	HRL 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	8	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
1	9.5	261430	HRL 1 KP 9.5 PP JAWS (Bag of 50 pairs)	HRL 1 A 9,5 PP ST M BL	423130	Jaws (pair)	Polypropylene	50
1	9.5	3984288	HRL 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	9.5	262753	HRL 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	9.5	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
1	9.5	261430	HRL 1 KP 9.5 PP JAWS (Bag of 50 pairs)	HRL 1 D 9,5 PP ST M ZN	426991	Jaws (pair)	Polypropylene	50
1	9.5	263908	HRL 0-6 SIP ST LOCK PLATE (Bag of 50pcs)			Safety Plate	Steel	50 *
1	9.5	4018218	HRL 0+1 AF ST M ZN/NI EINTEILIG F STACKING BOLT (Bag of 50pcs)			Stacking Bolt	Steel zinc plated	50 *
1	10	261431	HRL 1 KP 10 PP JAWS (Bag of 50 pairs)	HRL 1 A 10 PP ST M ZN	423209	Jaws (pair)	Polypropylene	50
1	10	3984288	HRL 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	10	3984008	HRL 1 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
1	10	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
1	12	261432	HRL 1 KP 12 PP JAWS (Bag of 50 pairs)	HRL 1 A 12 PP ST M ZN	423210	Jaws (pair)	Polypropylene	50
1	12	3984288	HRL 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	12	3984008	HRL 1 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
1	12	6170419	Hex.set scr ISO4014-M6x30-8.8-ZnNi (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	12.7	265431	HRL 2 KP 12.7 PP JAWS (Bag of 50 pairs)	HRL 2 A 12,7 PP ST M BL	423133	Jaws (pair)	Polypropylene	50
2	12.7	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	12.7	262754	HRL 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	12.7	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	12.7	265431	HRL 2 KP 12.7 PP JAWS (Bag of 50 pairs)	HRL 2 A 12.7 PP ST M ZN	423211	Jaws (pair)	Polypropylene	50
2	12.7	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	12.7	3983739	HRL 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	12.7	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	12.7	265431	HRL 2 KP 12.7 PP JAWS (Bag of 50 pairs)	HRL 2 A1 12,7 PP ST M ZN	424069	Jaws (pair)	Polypropylene	50
2	12.7	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	12.7	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	12.7	265431	HRL 2 KP 12.7 PP JAWS (Bag of 50 pairs)	HRL 2 A1TM 12,7 PP ST M ZN	431755	Jaws (pair)	Polypropylene	50
2	12.7	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	12.7	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	12.7	3074144	HRL TMV6 ST ZN C-RAIL NUT (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50 *
2	13.7	265432	HRL 2 KP 13.7 PP JAWS (Bag of 50 pairs)	HRL 2 A 13.7 PP ST M BL	423134	Jaws (pair)	Polypropylene	50
2	13.7	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	13.7	262754	HRL 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	13.7	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	14	265433	HRL 2 KP 14 PP JAWS (Bag of 50 pairs)	HRL 2 A 14 PP ST M BL	423135	Jaws (pair)	Polypropylene	50
2	14	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	14	262754	HRL 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	14	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	14	265433	HRL 2 KP 14 PP JAWS (Bag of 50 pairs)	HRL 2 A 14 PP ST M ZN	423213	Jaws (pair)	Polypropylene	50
2	14	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	14	3983739	HRL 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	14	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	15	265434	HRL 2 KP 15 PP JAWS (Bag of 50 pairs)	HRL 2 A 15 PP ST M BL	423136	Jaws (pair)	Polypropylene	50
2	15	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	15	262754	HRL 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	15	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	16	265435	HRL 2 KP 16 PP JAWS (Bag of 50 pairs)	HRL 2 A 16 PP ST M ZN	423215	Jaws (pair)	Polypropylene	50
2	16	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	16	3983739	HRL 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	16	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	16.0	265435	HRL 2 KP 16 PP JAWS (Bag of 50 pairs)	HRL 2 A1TM 16 PP ST M ZN	431759	Jaws (pair)	Polypropylene	50
2	16.0	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	16.0	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	16.0	3074144	HRL TMV6 ST ZN C-RAIL NUT (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50 *
2	17.1	265436	HRL 2 KP 17.1 PP JAWS (Bag of 50 pairs)	HRL 2 A 17,1 PP ST M BL	423138	Jaws (pair)	Polypropylene	50
2	17.1	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	17.1	262754	HRL 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	17.1	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	17.1	265436	HRL 2 KP 17.1 PP JAWS (Bag of 50 pairs)	HRL 2 A 17,1 PP ST M ZN	423216	Jaws (pair)	Polypropylene	50
2	17.1	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	17.1	3983739	HRL 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	17.1	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
2	18	265437	HRL 2 KP 18 PP JAWS (Bag of 50 pairs)	HRL 2 A 18 PP ST M ZN	423217	Jaws (pair)	Polypropylene	50
2	18	3984291	HRL 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	18	3983739	HRL 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	18	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50 *
3	19	265403	HRL 3 KP 19 PP JAWS (Bag of 50 pairs)	HRL 3 A 19 PP ST M BL	423140	Jaws (pair)	Polypropylene	50
3	19	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	19	262755	HRL 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	19	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	19	265403	HRL 3 KP 19 PP JAWS (Bag of 50 pairs)	HRL 3 A 19 PP ST M ZN	423218	Jaws (pair)	Polypropylene	50
3	19	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	19	3984009	HRL 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	19	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	19.0	265403	HRL 3 KP 19 PP JAWS (Bag of 50 pairs)	HRL 3 A1TM 19 PP ST M ZN	431762	Jaws (pair)	Polypropylene	50
3	19.0	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	19.0	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	19.0	3074144	HRL TMV6 ST ZN C-RAIL NUT (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50 *
3	20	265404	HRL 3 KP 20 PP JAWS (Bag of 50 pairs)	HRL 3 A 20 PP ST M ZN	423219	Jaws (pair)	Polypropylene	50
3	20	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	20	3984009	HRL 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	20	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	21.3	265405	HRL 3 KP 21.3 PP JAWS (Bag of 50 pairs)	HRL 3 A 21,3 PP ST M BL	423142	Jaws (pair)	Polypropylene	50
3	21.3	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	21.3	262755	HRL 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	21.3	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	21.3	265405	HRL 3 KP 21.3 PP JAWS (Bag of 50 pairs)	HRL 3 A1TM 21,3 PP ST M ZN	431764	Jaws (pair)	Polypropylene	50
3	21.3	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	21.3	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	21.3	3074144	HRL TMV6 ST ZN C-RAIL NUT (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50 *
3	22	265406	HRL 3 KP 22 PP JAWS (Bag of 50 pairs)	HRL 3 A 22 PP ST M ZN	423221	Jaws (pair)	Polypropylene	50
3	22	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	22	3984009	HRL 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	22	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	23	265407	HRL 3 KP 23 PP JAWS (Bag of 50 pairs)	HRL 3 A 23 PP ST M BL	423144	Jaws (pair)	Polypropylene	50
3	23	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	23	262755	HRL 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	23	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	23	265407	HRL 3 KP 23 PP JAWS (Bag of 50 pairs)	HRL 3 A 23 PP ST M ZN	423222	Jaws (pair)	Polypropylene	50
3	23	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	23	3984009	HRL 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	23	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	25	265408	HRL 3 KP 25 PP JAWS (Bag of 50 pairs)	HRL 3 A 25 PP ST M BL	423145	Jaws (pair)	Polypropylene	50
3	25	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25	262755	HRL 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	25	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	25	265408	HRL 3 KP 25 PP JAWS (Bag of 50 pairs)	HRL 3 A 25 PP ST M ZN	423223	Jaws (pair)	Polypropylene	50
3	25	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25	3984009	HRL 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	25	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	25.4	265409	HRL 3 KP 25.4 PP JAWS (Bag of 50 pairs)	HRL 3 A 25,4 PP ST M BL	423146	Jaws (pair)	Polypropylene	50
3	25.4	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25.4	262755	HRL 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	25.4	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	25.4	265409	HRL 3 KP 25.4 PP JAWS (Bag of 50 pairs)	HRL 3 A1TM 25,4 PP ST M ZN	431768	Jaws (pair)	Polypropylene	50
3	25.4	3984345	HRL 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25.4	6171151	Hex.set scr ISO4014-M6x40-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
3	25.4	3074144	HRL TMV6 ST ZN C-RAIL NUT (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50 *
4	26.9	265411	HRL 4 KP 26.9 PP JAWS (Bag of 50 pairs)	HRL 4 A 26,9 PP ST M BL	423147	Jaws (pair)	Polypropylene	50
4	26.9	3984347	HRL 4 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
4	26.9	262756	HRL 4 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
4	26.9	6166140	Hex.set scr ISO4014-M6x45-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
4	28	265412	HRL 4 KP 28 PP JAWS (Bag of 50 pairs)	HRL 4 A 28 PP ST M BL	423148	Jaws (pair)	Polypropylene	50
4	28	3984347	HRL 4 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
4	28	262756	HRL 4 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
4	28	6166140	Hex.set scr ISO4014-M6x45-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
4	28	265412	HRL 4 KP 28 PP JAWS (Bag of 50 pairs)	HRL 4 A 28 PP ST M ZN	423226	Jaws (pair)	Polypropylene	50
4	28	3984347	HRL 4 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
4	28	3796575	HRL 4 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
4	28	6166140	Hex.set scr ISO4014-M6x45-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
4	30	265413	HRL 4 KP 30 PP JAWS (Bag of 50 pairs)	HRL 4 A 30 PP ST M BL	423149	Jaws (pair)	Polypropylene	50
4	30	3984347	HRL 4 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
4	30	262756	HRL 4 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
4	30	6166140	Hex.set scr ISO4014-M6x45-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
4	30	265413	HRL 4 KP 30 PP JAWS (Bag of 50 pairs)	HRL 4 A 30 PP ST M ZN	423227	Jaws (pair)	Polypropylene	50
4	30	3984347	HRL 4 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
4	30	3796575	HRL 4 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
4	30	6166140	Hex.set scr ISO4014-M6x45-8.8-ZnNi BOLTS(Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	32	265415	HRL 5 KP 32 PP JAWS (Bag of 50 pairs)	HRL 5 A 32 PP ST M BL	423150	Jaws (pair)	Polypropylene	50
5	32	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	32	262757	HRL 5 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
5	32	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	32	265415	HRL 5 KP 32 PP JAWS (Bag of 50 pairs)	HRL 5 A1TM 32 PP ST M ZN	431772	Jaws (pair)	Polypropylene	50
5	32	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	32	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	32	3074144	HRL TMV6 ST ZN C-RAIL NUT (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50 *
5	33.7	265416	HRL 5 KP 33.7 PP JAWS (Bag of 50 pairs)	HRL 5 A 33,7 PP ST M BL	423151	Jaws (pair)	Polypropylene	50
5	33.7	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	33.7	262757	HRL 5 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
5	33.7	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	35	265417	HRL 5 KP 35 PP JAWS (Bag of 50 pairs)	HRL 5 A 35 PP ST M BL	423152	Jaws (pair)	Polypropylene	50
5	35	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	35	262757	HRL 5 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
5	35	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	35	265417	HRL 5 KP 35 PP JAWS (Bag of 50 pairs)	HRL 5 A 35 PP ST M ZN	423230	Jaws (pair)	Polypropylene	50
5	35	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	35	3984013	HRL 5 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
5	35	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	38	265418	HRL 5 KP 38 PP JAWS (Bag of 50 pairs)	HRL 5 A 38 PP ST M BL	423153	Jaws (pair)	Polypropylene	50
5	38	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	38	262757	HRL 5 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
5	38	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	40	265419	HRL 5 KP 40 PP JAWS (Bag of 50 pairs)	HRL 5 A 40 PP ST M BL	423154	Jaws (pair)	Polypropylene	50
5	40	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	40	262757	HRL 5 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
5	40	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
5	42	265420	HRL 5 KP 42 PP JAWS (Bag of 50 pairs)	HRL 5 A 42 PP ST M BL	423155	Jaws (pair)	Polypropylene	50
5	42	3984350	HRL 5 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
5	42	262757	HRL 5 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
5	42	6171152	Hex.set scr ISO4014-M6x60-8.8-ZnNi BOLTS (Bag of 100pcs)			Hex head bolt	Steel zinc plated	100
6	44.5	265424	HRL 6 KP 44.5 PP JAWS (Bag of 25 pairs)	HRL 6 A 44,5 PP ST M BL	423156	Jaws (pair)	Polypropylene	25
6	44.5	3984354	HRL 6 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
6	44.5	261289	HRL 6 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
6	44.5	6171153	Hex.set scr ISO4014-M6x70-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
6	48.3	265425	HRL 6 KP 48.3 PP JAWS (Bag of 25 pairs)	HRL 6 A 48,3 PP ST M BL	423157	Jaws (pair)	Polypropylene	25
6	48.3	3984354	HRL 6 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
6	48.3	261289	HRL 6 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
6	48.3	6171153	Hex.set scr ISO4014-M6x70-8.8-ZnNi BOLTS (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
6	50.8	265426	HRL 6 KP 50.8 PP JAWS (Bag of 25 pairs)	HRL 6 A 50,8 PP ST M BL	423158	Jaws (pair)	Polypropylene	25
6	50.8	3984354	HRL 6 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
6	50.8	261289	HRL 6 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
6	50.8	6171153	Hex.set scr ISO4014-M6x70-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
6	50.8	265426	HRL 6 KP 50.8 PP JAWS (Bag of 25 pairs)	HRL 6 A 50,8 PP ST M ZN	423236	Jaws (pair)	Polypropylene	25
6	50.8	3984354	HRL 6 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
6	50.8	261557	HRL 6 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
6	50.8	6171153	Hex.set scr ISO4014-M6x70-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50

Heavy Duty Clamps - HRS

Find below the part numbers for our HRS - heavy duty clamps. Log in to your My HYDAC portal to order.

Size	Bore Size	Part Number	Part Description	Superseded Description	Superseded P/N	Components	Material	Quantity
1	9.5	260368	HRS 1 KP 9.5 PP JAWS (Bag of 50 pairs)	HRS 1 A 9.5 PP ST M BL	420003	Jaws (pair)	Polypropylene	50
1	9.5	261837	HRS 1 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	9.5	262745	HRS 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	9.5	601649	Hex.set scr ISO4014-M10x45-8.8 BOLTS(Bag of 100pcs)			Hex head bolt	Steel	100
1	12	260005	HRS 1 KP 12 PP JAWS (Bag of 50 pairs)	HRS 1 A 12 PP ST M BL	420006	Jaws (pair)	Polypropylene	50
1	12	261837	HRS 1 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	12	262745	HRS 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	12	601649	Hex.set scr ISO4014-M10x45-8.8 BOLTS(Bag of 100pcs)			Hex head bolt	Steel	100
1	12.7	260370	HRS 1 KP 12.7 PP JAWS (Bag of 50 pairs)	HRS 1 A 12.7 PP ST M ZN	420852	Jaws (pair)	Polypropylene	50
1	12.7	261837	HRS 1 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	12.7	262749	HRS 1 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
1	12.7	601649	Hex.set scr ISO4014-M10x45-8.8 BOLTS(Bag of 100pcs)			Hex head bolt	Steel	100
1	13.7	260007	HRS 1 KP 13.7 PP JAWS (Bag of 50 pairs)	HRS 1 A 13.7 PP ST M BL	420008	Jaws (pair)	Polypropylene	50
1	13.7	261837	HRS 1 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	13.7	262745	HRS 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	13.7	601649	Hex.set scr ISO4014-M10x45-8.8 BOLTS(Bag of 100pcs)			Hex head bolt	Steel	100
1	16	260008	HRS 1 KP 16 PP JAWS (Bag of 50 pairs)	HRS 1 A 16 PP ST M BL	420011	Jaws (pair)	Polypropylene	50
1	16	261837	HRS 1 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	16	262745	HRS 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	16	601649	Hex.set scr ISO4014-M10x45-8.8 BOLTS(Bag of 100pcs)			Hex head bolt	Steel	100
1	17.1	260371	HRS 1 KP 17.1 PP JAWS (Bag of 50 pairs)	HRS 1 A 17.1 PP ST M BL	420012	Jaws (pair)	Polypropylene	50
1	17.1	261837	HRS 1 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	17.1	262745	HRS 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	17.1	601649	Hex.set scr ISO4014-M10x45-8.8 BOLTS(Bag of 100pcs)			Hex head bolt	Steel	100
1	18	260009	HRS 1 KP 18 PP JAWS (Bag of 50 pairs)	HRS 1 A 18 PP ST M BL	420013	Jaws (pair)	Polypropylene	50
1	18	261837	HRS 1 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	18	262745	HRS 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	18	601649	Hex.set scr ISO4014-M10x45-8.8 BOLTS(Bag of 100pcs)			Hex head bolt	Steel	100
2	19	260363	HRS 2 KP 19 PP JAWS (Bag of 50 pairs)	HRS 2 A 19 PP ST M ZN	420079	Jaws (pair)	Polypropylene	50
2	19	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	19	262750	HRS 2 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	19	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
2	20	260011	HRS 2 KP 20 PP JAWS (Bag of 50 pairs)	HRS 2 A 20 PP ST M BL	420015	Jaws (pair)	Polypropylene	50
2	20	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	20	262746	HRS 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	20	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
2	21.3	260364	HRS 2 KP 21.3 PP JAWS (Bag of 50 pairs)	HRS 2 A 21.3 PP ST M ZN	420081	Jaws (pair)	Polypropylene	50
2	21.3	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	21.3	262750	HRS 2 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	21.3	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
2	22	260012	HRS 2 KP 22 PP JAWS (Bag of 50 pairs)	HRS 2 A 22 PP ST M BL	420017	Jaws (pair)	Polypropylene	50
2	22	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	22	262746	HRS 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	22	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
2	25	260013	HRS 2 KP 25 PP JAWS (Bag of 50 pairs)	HRS 2 A 25 PP ST M ZN	420083	Jaws (pair)	Polypropylene	50
2	25	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	25	262750	HRS 2 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	25	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
2	25.4	260365	HRS 2 KP 25.4 PP JAWS (Bag of 50 pairs)	HRS 2 A 25.4 PP ST M BL	420019	Jaws (pair)	Polypropylene	50
2	25.4	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	25.4	262746	HRS 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	25.4	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
2	26.7	260366	HRS 2 KP 26.6 PP JAWS (Bag of 50 pairs)	HRS 2 A 26.7 PP ST M BL	420020	Jaws (pair)	Polypropylene	50
2	26.7	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	26.7	262746	HRS 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	26.7	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
2	28	260014	HRS 2 KP 28 PP JAWS (Bag of 50 pairs)	HRS 2 A 28 PP ST M BL	420021	Jaws (pair)	Polypropylene	50
2	28	261838	HRS 2 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	28	262746	HRS 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	28	601323	Hex.set scr ISO4014-M10x60-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
3	30	260016	HRS 3 KP 30 PP JAWS (Bag of 50 pairs)	HRS 3 A 30 PP ST M ZN	420087	Jaws (pair)	Polypropylene	50
3	30	261839	HRS 3 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	30	262751	HRS 3 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	30	601324	Hex.set scr ISO4014-M10x70-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
3	32	260361	HRS 3 KP 32 PP JAWS (Bag of 50 pairs)	HRS 3 A 32 PP ST M ZN	420088	Jaws (pair)	Polypropylene	50
3	32	261839	HRS 3 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	32	262751	HRS 3 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	32	601324	Hex.set scr ISO4014-M10x70-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
3	33.7	260362	HRS 3 KP 33.7 PP JAWS (Bag of 50 pairs)	HRS 3 A 33.7 PP ST M ZN	420089	Jaws (pair)	Polypropylene	50
3	33.7	261839	HRS 3 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	33.7	262751	HRS 3 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	33.7	601324	Hex.set scr ISO4014-M10x70-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
3	35	260017	HRS 3 KP 35 PP JAWS (Bag of 50 pairs)	HRS 3 A 35 PP ST M BL	420025	Jaws (pair)	Polypropylene	50
3	35	261839	HRS 3 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	35	262747	HRS 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	35	601324	Hex.set scr ISO4014-M10x70-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
3	38	260018	HRS 3 KP 38 PP JAWS (Bag of 50 pairs)	HRS 3 A 38 PP ST M ZN	420091	Jaws (pair)	Polypropylene	50
3	38	261839	HRS 3 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	38	262751	HRS 3 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	38	601324	Hex.set scr ISO4014-M10x70-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
3	40	262338	HRS 3 KP 40 PP JAWS (Bag of 50 pairs)	HRS 3 A 40 PP ST M ZN	420092	Jaws (pair)	Polypropylene	50
3	40	261839	HRS 3 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	40	262751	HRS 3 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	40	601324	Hex.set scr ISO4014-M10x70-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
3	42	260019	HRS 3 KP 42 PP JAWS (Bag of 50 pairs)	HRS 3 A 42 PP ST M ZN	420093	Jaws (pair)	Polypropylene	50
3	42	261839	HRS 3 DP ST ZN COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	42	262751	HRS 3 AP ST M ZN WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	42	601324	Hex.set scr ISO4014-M10x70-8.8 BOLTS (Bag of 100pcs)			Hex head bolt	Steel	100
4	38	260255	HRS 4 KP 38 PP JAWS (Bag of 25 pairs)	HRS 4 A 38 PP ST M BL	420030	Jaws (pair)	Polypropylene	25
4	38	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	38	264809	HRS 4 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
4	38	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	38	260255	HRS 4 KP 38 PP JAWS (Bag of 25 pairs)	HRS 4 D 38 PP ST M BL	421590	Jaws (pair)	Polypropylene	25
4	38	261868	HRS 4 SIP ST ZN LOCK PLATE (Bag of 25pcs)			Safety Plate	Steel zinc plated	25
4	38	441534	HRS 4 AF 12 ST M ZNC STACKING BOLT (Bag of 50pcs)			Stacking Bolt	Steel zinc plated	50
4	42	260021	HRS 4 KP 42 PP JAWS (Bag of 25 pairs)	HRS 4 A 42 PP ST M ZN	420096	Jaws (pair)	Polypropylene	25
4	42	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	42	265284	HRS 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	42	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	44.5	260359	HRS 4 KP 44.5 PP JAWS (Bag of 25 pairs)	HRS 4 A 44.5 PP ST M ZN	420097	Jaws (pair)	Polypropylene	25
4	44.5	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	44.5	265284	HRS 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	44.5	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	48.3	260256	HRS 4 KP 48.3 PP JAWS (Bag of 25 pairs)	HRS 4 A 48.3 PP ST M ZN	420098	Jaws (pair)	Polypropylene	25
4	48.3	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	48.3	265284	HRS 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	48.3	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	50.8	260360	HRS 4 KP 50.8 PP JAWS (Bag of 25 pairs)	HRS 4 A 50.8 PP ST M ZN	420099	Jaws (pair)	Polypropylene	25
4	50.8	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	50.8	265284	HRS 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	50.8	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	50.8	260360	HRS 4 KP 50.8 PP JAWS (Bag of 25 pairs)	HRS 4 A1 50.8 PP ST M ZN	420879	Jaws (pair)	Polypropylene	25
4	50.8	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	50.8	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	50.8	260360	HRS 4 KP 50.8 PP JAWS (Bag of 25 pairs)	HRS 4 AV 50.8 PP ST M BL	441883	Jaws (pair)	Polypropylene	25
4	50.8	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	50.8	262082	HRS 4 APV ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
4	50.8	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	57	260022	HRS 4 KP 57 PP JAWS (Bag of 25 pairs)	HRS 4 A 57 PP ST M BL	420036	Jaws (pair)	Polypropylene	25
4	57	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	57	264809	HRS 4 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
4	57	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	60.3	260257	HRS 4 KP 60.3 PP JAWS (Bag of 25 pairs)	HRS 4 A 60.3 PP ST M ZN	420102	Jaws (pair)	Polypropylene	25
4	60.3	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	60.3	265284	HRS 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	60.3	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	60.3	260257	HRS 4 KP 60.3 PP JAWS (Bag of 25 pairs)	HRS 4 AV 60.3 PP ST M BL	441889	Jaws (pair)	Polypropylene	25
4	60.3	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	60.3	262082	HRS 4 APV ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
4	60.3	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	60.3	260257	HRS 4 KP 60.3 PP JAWS (Bag of 25 pairs)	HRS 4 D 60,3 PP ST M BL	421597	Jaws (pair)	Polypropylene	25
4	60.3	261868	HRS 4 SIP ST ZN LOCK PLATE (Bag of 25pcs)			Safety Plate	Steel zinc plated	25
4	60.3	441534	HRS 4 AF 12 ST M ZNC STACKING BOLT (Bag of 50pcs)			Stacking Bolt	Steel zinc plated	50
4	65	262619	HRS 4 KP 65 PP JAWS (Bag of 25 pairs)	HRS 4 A 65 PP ST M BL	420038	Jaws (pair)	Polypropylene	25
4	65	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	65	264809	HRS 4 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
4	65	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
4	70	262229	HRS 4 KP 70 PP JAWS (Bag of 25 pairs)	HRS 4 A 70 PP ST M ZN	420104	Jaws (pair)	Polypropylene	25
4	70	261840	HRS 4 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	70	265284	HRS 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	70	601338	Hex.set scr ISO4014-M12x100-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
5	73	262230	HRS 5 KP 73 PP JAWS (Bag of 25 pairs)	HRS 5 A 73 PP ST M BL	420043	Jaws (pair)	Polypropylene	25
5	73	261841	HRS 5 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	73	268848	HRS 5 AP ST BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
5	73	601351	Hex.set scr ISO4014-M16x130-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
5	76.1	260025	HRS 5 KP 76.1 PP JAWS (Bag of 25 pairs)	HRS 5 A 76.1 PP ST M ZN	420109	Jaws (pair)	Polypropylene	25
5	76.1	261841	HRS 5 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	76.1	261769	HRS 5 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
5	76.1	601351	Hex.set scr ISO4014-M16x130-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
5	88.9	260258	HRS 5 KP 88.9 PP JAWS (Bag of 25 pairs)	HRS 5 A 88.9 PP ST M BL	420046	Jaws (pair)	Polypropylene	25
5	88.9	261841	HRS 5 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	88.9	268848	HRS 5 AP ST BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
5	88.9	601351	Hex.set scr ISO4014-M16x130-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	50
6	101.6	262216	HRS 6 KP 101.6 PP JAWS (Bag of 25 pairs)	HRS 6 A 101.6 PP ST M BL	420049	Jaws (pair)	Polypropylene	25
6	101.6	261842	HRS 6 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
6	101.6	3022559	HRS 6 AP ST BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
6	101.6	601686	Hex.set scr ISO4014-M20x190-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	25 *
6	114.3	260028	HRS 6 KP 114.3 PP JAWS (Bag of 25 pairs)	HRS 6 A 114.3 PP ST M BL	420051	Jaws (pair)	Polypropylene	25
6	114.3	261842	HRS 6 DP ST ZN COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
6	114.3	3022559	HRS 6 AP ST BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
6	114.3	601686	Hex.set scr ISO4014-M20x190-8.8 BOLTS (Bag of 50pcs)			Hex head bolt	Steel	25 *

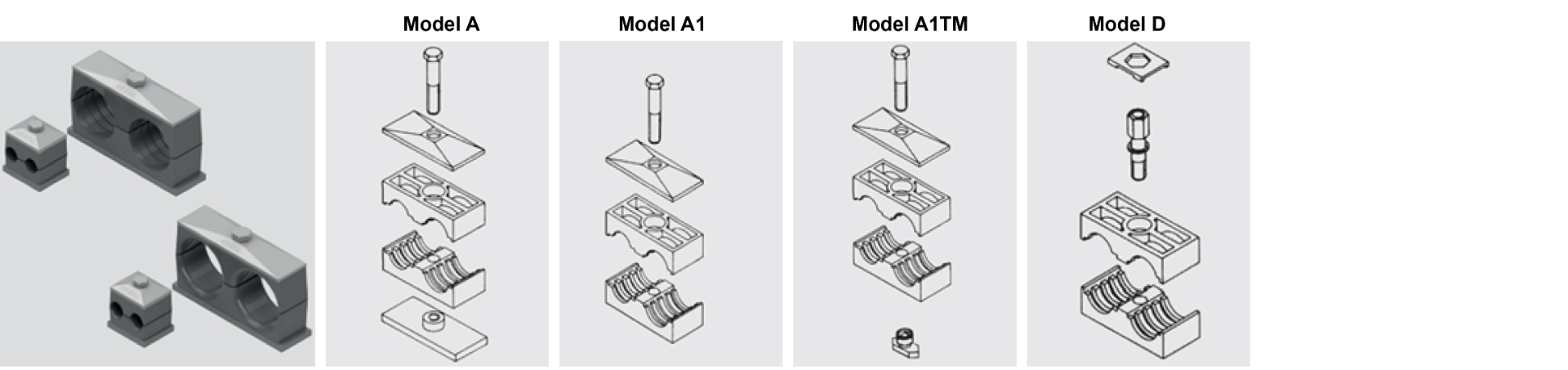

Twin Clamps - HRZ

Find below the part numbers for our HRZ - twin clamps. Log in to your My HYDAC portal to order.

Size	Bore Size	Part Number	Part Description	Superseded Description	Superseded P/N	Components	Material	Quantity
1	6-6	260472	HRZ 1 KP 6-6 PP JAWS (Bag of 50 pairs)	HRZ 1 A 6-6 PP ST M BL	640608	Jaws (pair)	Polypropylene	50
1	6-6	3984723	HRZ 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	6-6	264435	HRZ 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	6-6	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
1	8-8	260479	HRZ 1 KP 8-8 PP JAWS (Bag of 50 pairs)	HRZ 1 A 8-8 PP ST M ZN	430668	Jaws (pair)	Polypropylene	50
1	8-8	3984723	HRZ 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	8-8	3984883	HRZ 1 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
1	8-8	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
1	10-10	260484	HRZ 1 KP 10-10 PP JAWS (Bag of 50 pairs)	HRZ 1 A 10-10 PP ST M BL	430612	Jaws (pair)	Polypropylene	50
1	10-10	3984723	HRZ 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	10-10	264435	HRZ 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	10-10	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
1	12-12	260486	HRZ 1 KP 12-12 PP JAWS (Bag of 50 pairs)	HRZ 1 A 12-12 PP ST M ZN	430671	Jaws (pair)	Polypropylene	50
1	12-12	3984723	HRZ 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	12-12	3984883	HRZ 1 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
1	12-12	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
1	6.4-6.4	260476	HRZ 1 KP 6.4-6.4 PP JAWS (Bag of 50 pairs)	HRZ 1 A 6,4-6,4 PP ST M BL	430609	Jaws (pair)	Polypropylene	50
1	6.4-6.4	3984723	HRZ 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	6.4-6.4	264435	HRZ 1 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
1	6.4-6.4	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
1	9.5-9.5	260483	HRZ 1 KP 9.5-9.5 PP JAWS (Bag of 50 pairs)	HRZ 1 A 9,5-9,5 PP ST M ZN	430669	Jaws (pair)	Polypropylene	50
1	9.5-9.5	3984723	HRZ 1 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
1	9.5-9.5	3984883	HRZ 1 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
1	9.5-9.5	6171130	Hex.set scr ISO4014-M6x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
1	9.5-9.5	260483	HRZ 1 KP 9.5-9.5 PP JAWS (Bag of 50 pairs)	HRZ 1 D 9,5-9,5 PP ST M BL	431075	Jaws (pair)	Polypropylene	50
1	9.5-9.5	263963	HRZ 1 SIP ST BL LOCK PLATE (Bag of 50pcs)			Safety Plate	Steel	50
1	9.5-9.5	4018218	HRL 0+1 AF ST M ZN/NI EINTEILIG F STACKING BOLT (Bag of 50pcs)			Stacking Bolt	Steel zinc plated	50
2	12.7-12.7	260488	HRZ 2 KP 12.7-12.7 PP JAWS (Bag of 50 pairs)	HRZ 2 A 12,7-12,7 PP ST M BL	430614	Jaws (pair)	Polypropylene	50
2	12.7-12.7	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	12.7-12.7	264436	HRZ 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	12.7-12.7	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	12.7-12.7	260488	HRZ 2 KP 12.7-12.7 PP JAWS (Bag of 50 pairs)	HRZ 2 A1 12,7-12,7 PP ST M ZN	430643	Jaws (pair)	Polypropylene	50
2	12.7-12.7	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	12.7-12.7	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	13.7-13.7	260490	HRZ 2 KP 13.7-13.7 PP JAWS (Bag of 50 pairs)	HRZ 2 A1 13,7-13,7 PP ST M ZN	430702	Jaws (pair)	Polypropylene	50
2	13.7-13.7	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	13.7-13.7	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	14-14	260492	HRZ 2 KP 14-14 PP JAWS (Bag of 50 pairs)	HRZ 2 A 14-14 PP ST M ZN	430674	Jaws (pair)	Polypropylene	50
2	14-14	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	14-14	3984895	HRZ 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	14-14	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	15-15	260496	HRZ 2 KP 15-15 PP JAWS (Bag of 50 pairs)	HRZ 2 A 15-15 PP ST M BL	430617	Jaws (pair)	Polypropylene	50
2	15-15	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	15-15	264436	HRZ 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	15-15	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	16-16	260499	HRZ 2 KP 16-16 PP JAWS (Bag of 50 pairs)	HRZ 2 A 16-16 PP ST M ZN	430676	Jaws (pair)	Polypropylene	50
2	16-16	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	16-16	3984895	HRZ 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	16-16	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	16-16	260499	HRZ 2 KP 16-16 PP JAWS (Bag of 50 pairs)	HRZ 2 A1 16-16 PP ST M ZN	430705	Jaws (pair)	Polypropylene	50
2	16-16	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	16-16	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	16-16	260499	HRZ 2 KP 16-16 PP JAWS (Bag of 50 pairs)	HRZ 2 A1TM 16-16 PP ST M ZN	442479	Jaws (pair)	Polypropylene	50
2	16-16	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	16-16	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS (Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	16-16	4012469	HRZ-TM8-ST-M-ZN C-RAIL NUT C/W O-RING (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50
2	16-16	260499	HRZ 2 KP 16-16 PP JAWS (Bag of 50 pairs)	HRZ 2 D 16-16 PP ST M BL	431082	Jaws (pair)	Polypropylene	50
2	16-16	4028753	HRZ 2-5 SIP ZN/NI 3LG LOCK PLATE (Bag of 50pcs)			Safety Plate	Steel zinc plated	50
2	16-16	441549	HRZ 2 AF ST M ZN STACKING BOLT (Bag of 50pcs)			Stacking Bolt	Steel zinc plated	50
2	17.1-17.1	261085	HRZ 2 KP 17.1-17.1 PP JAWS (Bag of 50 pairs)	HRZ 2 A 17,1-17,1 PP ST M BL	430619	Jaws (pair)	Polypropylene	50
2	17.1-17.1	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	17.1-17.1	264436	HRZ 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	17.1-17.1	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	17.1-17.1	261085	HRZ 2 KP 17.1-17.1 PP JAWS (Bag of 50 pairs)	HRZ 2 A 17,1-17,1 PP ST M ZN	430677	Jaws (pair)	Polypropylene	50
2	17.1-17.1	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	17.1-17.1	3984895	HRZ 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	17.1-17.1	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	18-18	260501	HRZ 2 KP 18-18 PP JAWS (Bag of 50 pairs)	HRZ 2 A 18-18 PP ST M BL	430620	Jaws (pair)	Polypropylene	50
2	18-18	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	18-18	264436	HRZ 2 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
2	18-18	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
2	18-18	260501	HRZ 2 KP 18-18 PP JAWS (Bag of 50 pairs)	HRZ 2 A 18-18 PP ST M ZN	430678	Jaws (pair)	Polypropylene	50
2	18-18	3984747	HRZ 2 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
2	18-18	3984895	HRZ 2 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
2	18-18	6169984	Hex.set scr ISO4017-M8x35-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	19-19	260503	HRZ 3 KP 19-19 PP JAWS (Bag of 50 pairs)	HRZ 3 A 19-19 PP ST M BL	430621	Jaws (pair)	Polypropylene	50
3	19-19	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	19-19	264437	HRZ 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	19-19	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	19-19	260503	HRZ 3 KP 19-19 PP JAWS (Bag of 50 pairs)	HRZ 3 A 19-19 PP ST M ZN	2353929	Jaws (pair)	Polypropylene	50
3	19-19	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	19-19	3984899	HRZ 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	19-19	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	20-20	260505	HRZ 3 KP 20-20 PP JAWS (Bag of 50 pairs)	HRZ 3 A 20-20 PP ST M ZN	430680	Jaws (pair)	Polypropylene	50
3	20-20	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	20-20	3984899	HRZ 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	20-20	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	21.3-21.3	260509	HRZ 3 KP 21.3-21.3 PP JAWS (Bag of 50 pairs)	HRZ 3 A 21,3-21,3 PP ST M BL	430623	Jaws (pair)	Polypropylene	50
3	21.3-21.3	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	21.3-21.3	264437	HRZ 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	21.3-21.3	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	21.3-21.3	260509	HRZ 3 KP 21.3-21.3 PP JAWS (Bag of 50 pairs)	HRZ 3 A1TM 21,3-21,3 PP ST M BL	443514	Jaws (pair)	Polypropylene	50
3	21.3-21.3	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	21.3-21.3	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	21.3-21.3	4012469	HRZ-TM8-ST-M-ZN C-RAIL NUT C/W O-RING (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50
3	22-22	263326	HRGZ 3 KP 22-22 PP JAWS (Bag of 50 pairs)	HRGZ 3 A 22-22 PP ST M BL	443659	Jaws (pair)	Polypropylene	50
3	22-22	264437	HRZ 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	22-22	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	22-22	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	22-22	260510	HRZ 3 KP 22-22 PP JAWS (Bag of 50 pairs)	HRZ 3 A 22-22 PP ST M BL	430624	Jaws (pair)	Polypropylene	50
3	22-22	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	22-22	264437	HRZ 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	22-22	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	22-22	260510	HRZ 3 KP 22-22 PP JAWS (Bag of 50 pairs)	HRZ 3 A1 22-22 PP ST M ZN	430711	Jaws (pair)	Polypropylene	50
3	22-22	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	22-22	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	23-23	260513	HRZ 3 KP 23-23 PP JAWS (Bag of 50 pairs)	HRZ 3 A 23-23 PP ST M BL	430625	Jaws (pair)	Polypropylene	50
3	23-23	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	23-23	264437	HRZ 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	23-23	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	23-23	260513	HRZ 3 KP 23-23 PP JAWS (Bag of 50 pairs)	HRZ 3 A 23-23 PP ST M ZN	430683	Jaws (pair)	Polypropylene	50
3	23-23	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	23-23	3984899	HRZ 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	23-23	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	25-25	260515	HRZ 3 KP 25-25 PP JAWS (Bag of 50 pairs)	HRZ 3 A 25-25 PP ST M BL	430626	Jaws (pair)	Polypropylene	50
3	25-25	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25-25	264437	HRZ 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	25-25	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	25-25	260515	HRZ 3 KP 25-25 PP JAWS (Bag of 50 pairs)	HRZ 3 A 25-25 PP ST M ZN	430684	Jaws (pair)	Polypropylene	50
3	25-25	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25-25	3984899	HRZ 3 AP ST M ZN/NI WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel zinc plated	50
3	25-25	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	25-25	260515	HRZ 3 KP 25-25 PP JAWS (Bag of 50 pairs)	HRZ 3 A1TM 25-25 PP ST M BL	442081	Jaws (pair)	Polypropylene	50
3	25-25	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25-25	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
3	25-25	4012469	HRZ-TM8-ST-M-ZN C-RAIL NUT C/W O-RING (Bag of 50pcs)			C-Rail Nut	Steel zinc plated	50
3	25.4-25.4	260516	HRZ 3 KP 25.4-25.4 PP JAWS (Bag of 50 pairs)	HRZ 3 A 25,4-25,4 PP ST M BL	430627	Jaws (pair)	Polypropylene	50
3	25.4-25.4	3984749	HRZ 3 DP ST ZN/NI COVER PLATE (Bag of 50pcs)			Cover (Top) Plate	Steel zinc plated	50
3	25.4-25.4	264437	HRZ 3 AP ST M BL WELD PLATE (Bag of 50pcs)			Weld (Base) Plate	Steel	50
3	25.4-25.4	6216173	Hex.set scr ISO4014-M8x45-8.8-ZnNi BOLTS(Bag of 50pcs)			Hex head bolt	Steel zinc plated	50
4	26.6-26.6	260518	HRZ 4 KP 26.6-26.6 PP JAWS (Bag of 25 pairs)	HRZ 4 A 26,6-26,6 PP ST M ZN	430686	Jaws (pair)	Polypropylene	25
4	26.6-26.6	3984750	HRZ 4 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	26.6-26.6	264839	HRZ 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	26.6-26.6	6216174	Hex.set scr ISO4014-M8x50-ZnNi BOLTS(Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
4	28-28	260519	HRZ 4 KP 28-28 PP JAWS (Bag of 25 pairs)	HRZ 4 A 28-28 PP ST M BL	430629	Jaws (pair)	Polypropylene	25
4	28-28	3984750	HRZ 4 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	28-28	264801	HRZ 4 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
4	28-28	6216174	Hex.set scr ISO4014-M8x50-ZnNi BOLTS(Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
4	28-28	260519	HRZ 4 KP 28-28 PP JAWS (Bag of 25 pairs)	HRZ 4 A 28-28 PP ST M ZN	430687	Jaws (pair)	Polypropylene	25
4	28-28	3984750	HRZ 4 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	28-28	264839	HRZ 4 AP ST M ZN WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
4	28-28	6216174	Hex.set scr ISO4014-M8x50-ZnNi BOLTS(Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
4	30-30	260521	HRZ 4 KP 30-30 PP JAWS (Bag of 25 pairs)	HRZ 4 A 30-30 PP ST M BL	430630	Jaws (pair)	Polypropylene	25
4	30-30	3984750	HRZ 4 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
4	30-30	264801	HRZ 4 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
4	30-30	6216174	Hex.set scr ISO4014-M8x50-ZnNi BOLTS(Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	32-32	260523	HRZ 5 KP 32-32 PP JAWS (Bag of 25 pairs)	HRZ 5 A 32-32 PP ST M ZN	430689	Jaws (pair)	Polypropylene	25
5	32-32	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	32-32	264840	HRZ 5 AP ST M ZNC FORMED WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
5	32-32	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	33.7-33.7	260528	HRZ 5 KP 33,7-33,7 PP JAWS (Bag of 25 pairs)	HRZ 5 A 33,7-33,7 PP ST M BL	430632	Jaws (pair)	Polypropylene	25
5	33.7-33.7	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	33.7-33.7	264802	HRZ 5 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
5	33.7-33.7	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	35-35	260530	HRZ 5 KP 35-35 PP JAWS (Bag of 25 pairs)	HRZ 5 A 35-35 PP ST M BL	430633	Jaws (pair)	Polypropylene	25
5	35-35	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	35-35	264802	HRZ 5 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
5	35-35	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	35-35	260530	HRZ 5 KP 35-35 PP JAWS (Bag of 25 pairs)	HRZ 5 A 35-35 PP ST M ZN	430691	Jaws (pair)	Polypropylene	25
5	35-35	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	35-35	264840	HRZ 5 AP ST M ZNC FORMED WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
5	35-35	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	38-38	260534	HRZ 5 KP 38-38 PP JAWS (Bag of 25 pairs)	HRZ 5 A 38-38 PP ST M BL	430634	Jaws (pair)	Polypropylene	25
5	38-38	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	38-38	264802	HRZ 5 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
5	38-38	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	38-38	260534	HRZ 5 KP 38-38 PP JAWS (Bag of 25 pairs)	HRZ 5 A 38-38 PP ST M ZN	430692	Jaws (pair)	Polypropylene	25
5	38-38	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	38-38	264840	HRZ 5 AP ST M ZNC FORMED WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel zinc plated	25
5	38-38	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	40-40	260537	HRZ 5 KP 40-40 PP JAWS (Bag of 25 pairs)	HRZ 5 A 40-40 PP ST M BL	430635	Jaws (pair)	Polypropylene	25
5	40-40	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	40-40	264802	HRZ 5 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
5	40-40	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25
5	42-42	260539	HRZ 5 KP 42-42 PP JAWS (Bag of 25 pairs)	HRZ 5 A 42-42 PP ST M BL	430636	Jaws (pair)	Polypropylene	25
5	42-42	3984751	HRZ 5 DP ST ZN/NI COVER PLATE (Bag of 25pcs)			Cover (Top) Plate	Steel zinc plated	25
5	42-42	264802	HRZ 5 AP ST M BL WELD PLATE (Bag of 25pcs)			Weld (Base) Plate	Steel	25
5	42-42	6216176	Hex.set scr ISO4014-M8x60-8.8-ZnNi BOLTS (Bag of 25pcs)			Hex head bolt	Steel zinc plated	25

Suggestions

Quick Links

Product Categories
