Mobile controllers

POA

HYDAC offers a wide range of off-the-shelf products from TTControl, ranging from powerful CODESYS high-end controllers to cost-effective, mid-size ECUs. In addition, the portfolio also includes controllers for safety-critical applications, certified according to DIRECTIVE 2006/42/EC.

What's more, the products fulfil Safety Integrity / Performance Levels up to SIL 2 and PL d. Our ECUs answer to the demanding work environment of off-highway vehicles. Furthermore, to ensure a maximum level of reliability, we test all devices under extremely harsh conditions. Therefore, we use only the certified and tested components. Moreover, the electronic circuits beneficiate of a good protection thanks to a compact, automotive-style aluminium pressure die-cast housing.

The interconnection of several ECUs is possible via CAN bus to form a network. The programming of the units is either in C or in CODESYS®.

Key Characteristics:

  • Suitable for a wide range of applications
  • Certified according to EN ISO 13849 (PL d) and IEC 61508 (SIL 2)
  • Compliant with functional safety standards
  • A high-performance processors
  • Software-configurable I/Os for many different sensors and actuator types
  • A broad range of open programming environments, including C and CODESYS (V2.3, V3, V3 Safety SIL 2)


Available Products:

Safety Certified Controllers

TTC 2300 Family

TTC 2300 Family

The TTC 2300 family includes mid-sized control units for smart mobile machines that are functional, safety-certified, enable high performance, and support faster development cycles.

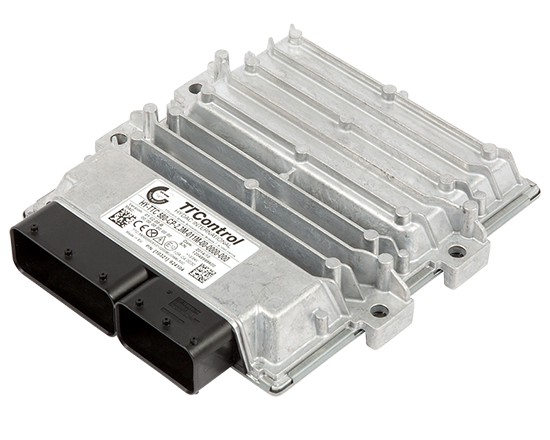

HY-TTC 508 / 510 / 540 / 580 / 590

HY-TTC 508/510/540/580/590

The HY-TTC 500 family consists of high-end safety control units designed to satisfy upcoming needs for a wide range of high-end applications like construction and agricultural machines.

HY-TTC 94

HY-TTC 94

HY-TTC 94 is the top-level electronic control unit of the HY-TTC 50 controller family, offering enhanced flexibility and safety

HY-TTC 30S / 32S

HY-TTC 30S / 32S

The HY-TTC 30S and HY-TTC 32S controllers are the safety certified variants of HY-TTC 30 and HY-TTC 32.



General Purpose Controllers

HY-TTC 77

HY-TTC 77

HY-TTC 77 is a powerful electronic control solution for the off-highway industry with 12V power supply.

HY-TTC 71

HY-TTC 71

The HY-TTC 71 is the ideal controller for smaller machines such as small wheel loaders, small excavators or small rollers with 12V power supply.

HY-TTC 60

HY-TTC 60

The HY-TTC 60 is part of the HY-TTC 50 controller family, offering unprecedented flexibility.



HY-TTC 50

HY-TTC 50

HY-TTC 50 is a powerful, yet cost-effective, electronic control unit.



HY-TTC 30 / 32

HY-TTC 30 / 32

HY-TTC 30/32 is a compact control unit specifically developed for use in cost-sensitive applications or smaller machines.



Product
Mobile controllers

Please contact the store to confirm stock availability near you

Recommended Products

FAQs

  • What mobile controllers does HYDAC have on offer?

    HYDAC offers a wide range of TTControl off-the-shelf products ranging from powerful CODESYS high-end controllers to cost-effective, mid-size electronic control units and Directive 2006/42/EC certified controllers for safety-critical applications.

    What is a key characteristic of the mobile controllers?

    The mobile controllers are high-performance processors.

    What environment are the mobile controllers suited to?

    The mobile controllers are suited to demanding off-highway vehicle work environments.

    What safety levels do the mobile controllers have?

    The mobile controllers fulfil safety integrity and performance levels up to SIL 2 and PL d and are compliant with functional safety standards.

    What protective feature comes with the mobile controllers?
    A compact, automotive-style aluminium pressure die-cast housing provides protection to the electronic circuits.
    Can several electronic control units be interconnected?
    Yes, the interconnection of several electronic control units is possible via CAN bus to form a network. The programming of the units is either in C or in CODESYS.
    What programming environments are the mobile controllers suited to?
    The mobile controllers are suited to a broad range of open programming environments, including C and CODESYS (V2.3, V3, V3 Safety SIL 2).
    What mobile controllers are available under the safety certified range?

    Mobile controllers available under the safety certified range include:

    • TTC 2300 family
    • HY-TTC 500 family
    • HY-TTC 94
    • HY-TTC 30S/32S
    What mobile controllers are available under the general-purpose range?

    Mobile controllers available under the general-purpose range include:

    • HY-TTC 77
    • HY-TTC 71
    • HY-TTC 60
    • HY-TTC 30/32
