HMG 4000 and Accessories

From A$ 150.90

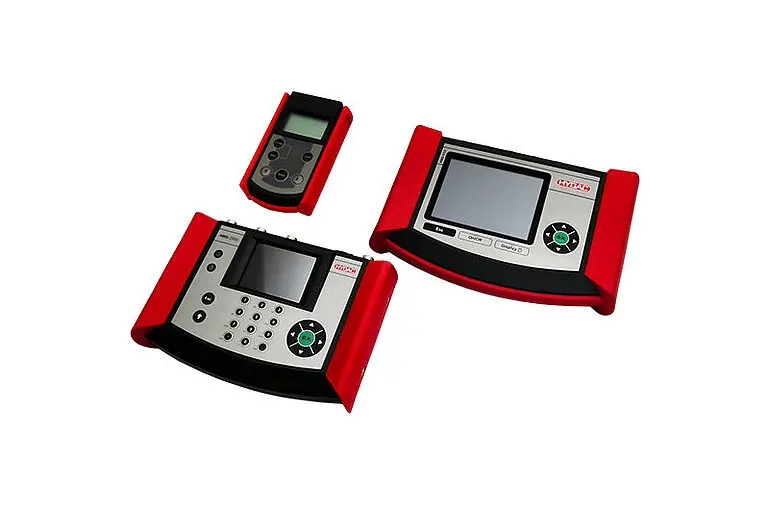

The HMG 4000 hand–held measuring unit is a portable measuring and data logging device.

HYDAC mainly developed this tool for all values measured in relation to hydraulic systems, such as pressure, temperature, flow rate and position. Moreover, it provides a very high flexibility, even when it comes to evaluating other measuring values. Also, the main applications are servicing, maintenance or test rigs.

What's more, the HMG 4000 has a very easy-to-operate user interface due to its large 5.7" touchscreen. Indeed, the operator can access all of the unit's functions and settings by means of clearly presented selection menus.

Furthermore, the HMG 4000 can record the signals of up to 38 sensors at once. It is also possible as an option to connect the HMG 4000 to an existing CAN network. This enables the recording of measured data transmitted via CAN bus (e.g. motor speed, motor pressure) in combination with the measured data from the hydraulic system.

However, the most impressing feature of the HMG 4000 is its ability to record the dynamic processes of a machine in the form of a measurement curve and render them as a graph — and, moreover, online and in real time.

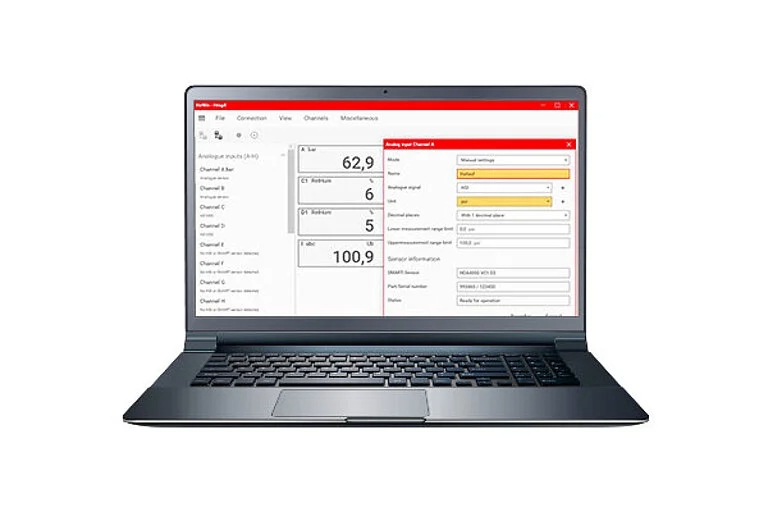

HYDAC software HMGWIN which is specific to the HMG 4000, is supplied for convenient post-processing, rendering and evaluation of measurements on your computer.

Features:

  • A large, full graphics colour display 5.7" touch screen
  • Capable of recording up to 38 sensors at once, 8 analogue, 2 digital sensors and 28 HSCI sensors via CAN bus.
  • Up to 100 measurement channels can be depicted simultaneously
  • A high-speed measuring rate, up to 8 sensors at 0.1 ms at a time.
  • A rapid and automatic basic setting of the device by means of automatic sensor detection
  • Analogue inputs 0.. 20 mA, 4 .. 20 mA Voltage 0 .. 50V, -10 .. 10 V
  • PT 100/1000 input
  • Connection to a CAN bus system (also J1939)
  • A simple and user-friendly operation, intuitive menu
  • A practical, robust design
  • A very large data memory for archiving measurement curves. Enables the storage of 500 measurements with up to 8 Million measured values
  • Various measurement modes
  • The recording of dynamic processes "online" in real time
  • Event-driven measurements with several triggering options
  • A programming function for HYDAC switch devices
  • A PC interface via USB
  • Also, a USB Host connection for USB memory sticks
  • Convenient visualisation, archiving and data processing using the HMGWIN software
Electronics - software

Electronics - software

Please see below part numbers

Grouped product items
Part#DescriptionList Price Availability Qty
Loading...

Please wait...

Please contact the store to confirm stock availability near you

FAQs

  • What is the HMG 4000?
    The HMG 4000 is a portable handheld measuring and logging device.
    What is the function of the HMG 4000?
    HYDAC mainly developed this tool for all values measured in relation to hydraulic systems, such as pressure, temperature, flow rate and position.
    How many measurement channels can the HMG 4000 depict?

    The HMG 4000 can depict up to 100 measurement channels simultaneously.

    How does an operator work the HMG 4000?

    The operator works the HMG 4000 via its easy-to-operate user interface due to the large 5.7" touchscreen. The operator can access the unit's functions and settings by means of clearly presented selection menus.

    How many signals can the HMG 4000 record?
    The HMG 4000 can record signals of up to 38 sensors at once. It is also possible as an option to connect the HMG 4000 to an existing CAN network. This enables the recording of measured data transmitted via CAN bus such as motor speed and motor pressure in combination with measured data from the hydraulic system.
    Can the HMG 4000 record the dynamic processes of a machine in the form of a measurement curve and render them as a graph online and in real time?

    Yes, the HMG 4000 can record the dynamic processes of a machine in the form of a measurement curve and render them as a graph online and in real time.

    What is the HMG 4000’s memory for archiving measurement curves?
    The HMG 4000 has a very large data memory for archiving measurement curves that enables the storage of 500 measurements with up to eight million measured values.
    What is HYDAC software HMGWIN?

    HYDAC software HMGWIN, which is specific to the HMG 4000, is supplied for convenient post-processing, rendering and evaluation of measurements on a computer.

    What are features of the HMG 4000?

    Features of the HMG 4000 include:

    • High-speed measuring rate, up to eight sensors at 0.1ms at a time.
    • Rapid and automatic basic setting of the device by means of automatic sensor detection
    • PT 100/1000 input
    • Various measurement modes
    • Event-driven measurements, with several triggering options
    • PC interface via USB
    What are the HMG 4000’s main applications?

    The HMG 4000’s main applications are servicing, maintenance, or test rigs.
